Mini-R Kit by Katalyst replaces bulky OEM antennas with a compact design that still delivers strong cellular and Wi-Fi signal. Full adjustability lets you bend, tilt, and rotate 360° for the best reception in tight spaces — perfect for clean, low-profile installs.
Key Features
| Frequency Band | 600–960 MHz, 1400–2690 MHz, 3300–6000 MHz |
| Efficiency | Up 70.7% (Bent) |
| Dimensions | Φ 10.22 mm × 69.5 mm |
| Compliant | RoHS Compliant |

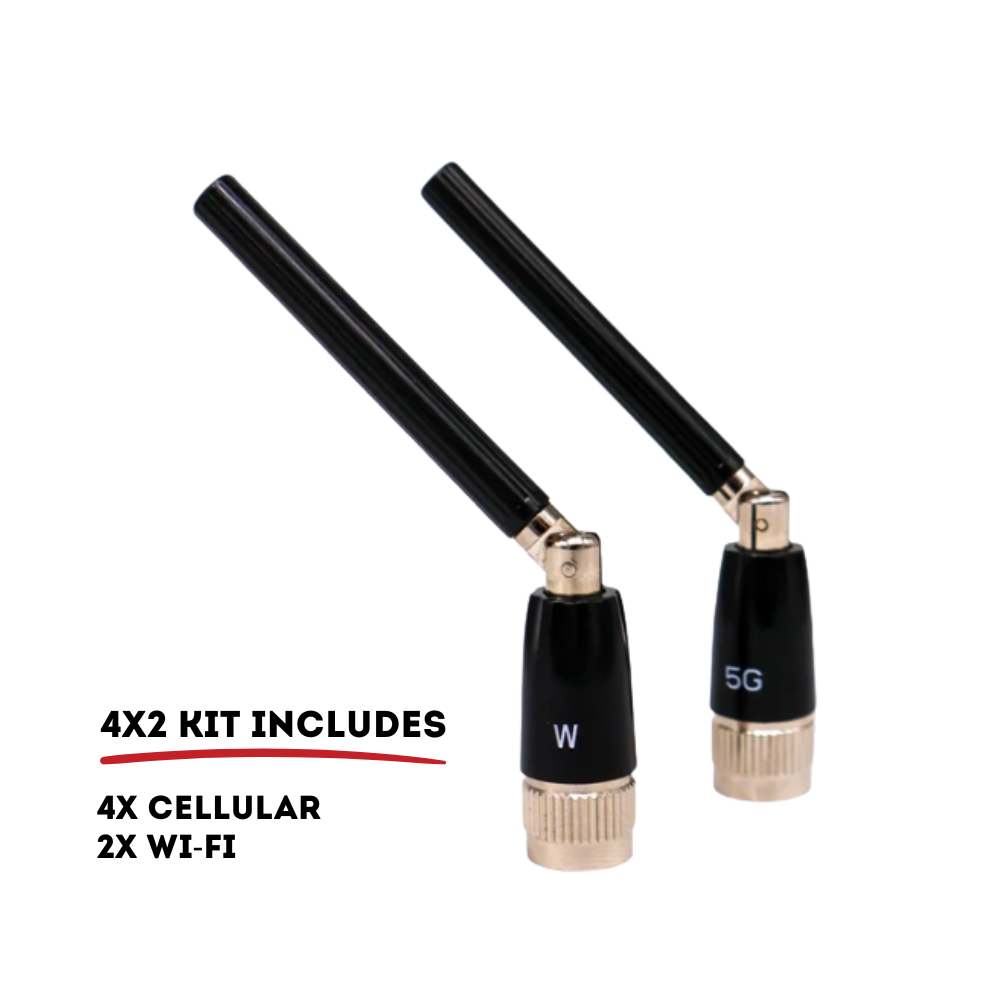

Package List
| 4x Cellular Mini-R Antenna |
| 2x Wi-Fi Mini-R Antenna |
or
| 2x Cellular Mini-R Antenna |
| 2x Wi-Fi Mini-R Antenna |
Technical Specs
| Frequency Range | 600-960 MHz, 1400-2690 MHz, 3300-6000 MHz |
| Impedance | 50 Ω |
| Polarization | Linear |
| Radiation Pattern | Omni-directional |
Physical Attributes
| Antenna Dimensions | 0.4 (inch) x 2.59 (inch) |
| Casting Material & Color | POM & Black |
| Connector Type | SMA Male |
| Weight | 0.34 oz |
| Mounting Type | Terminal (Connector) |

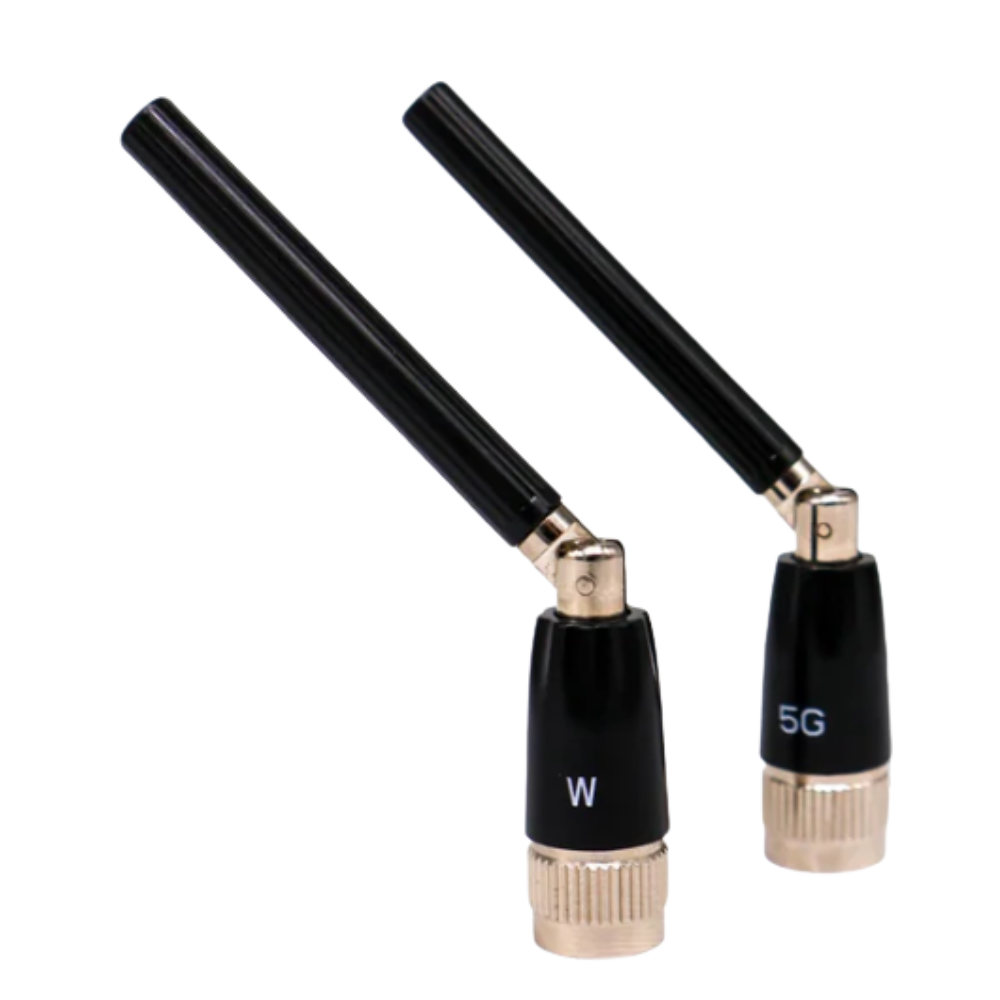

Can I move these antennas or are they stuck in one place?
The Mini-R antennas are articulating so you can move each individual antenna around. This helps find better signal and makes them more dynamic for storing.

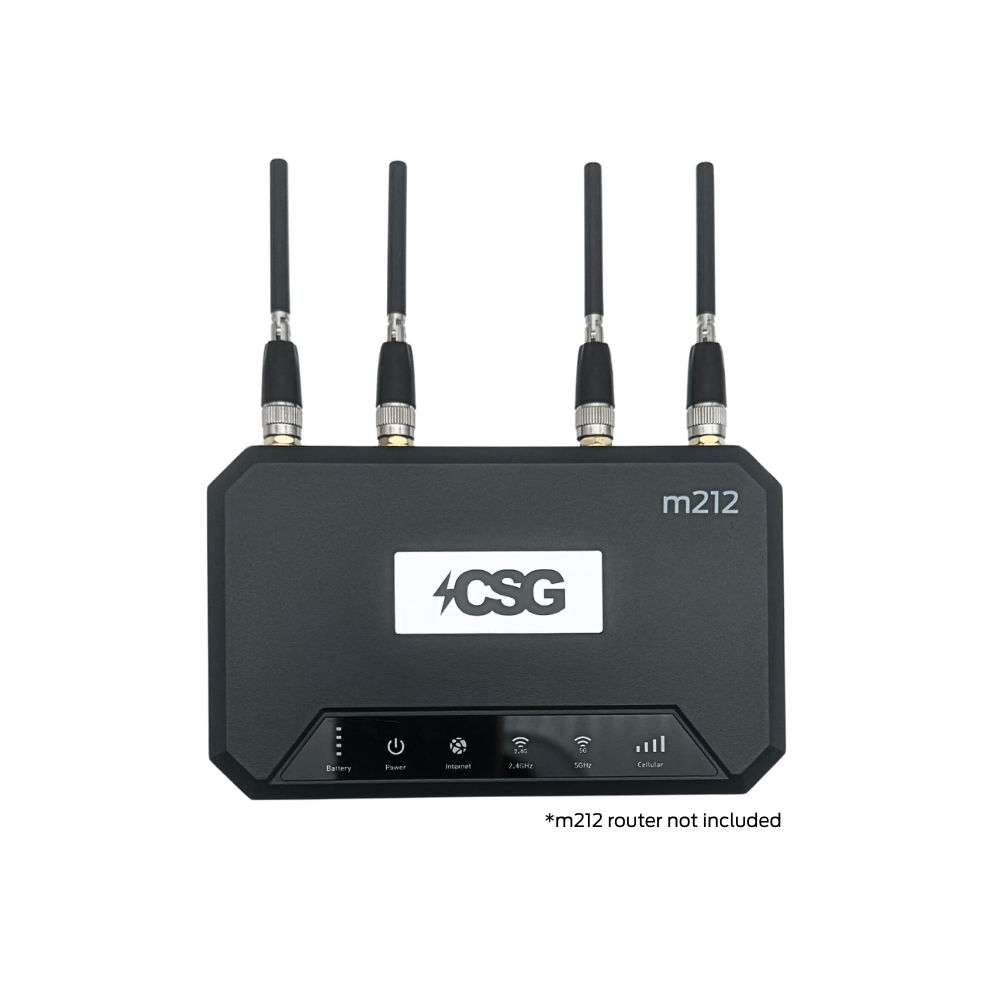

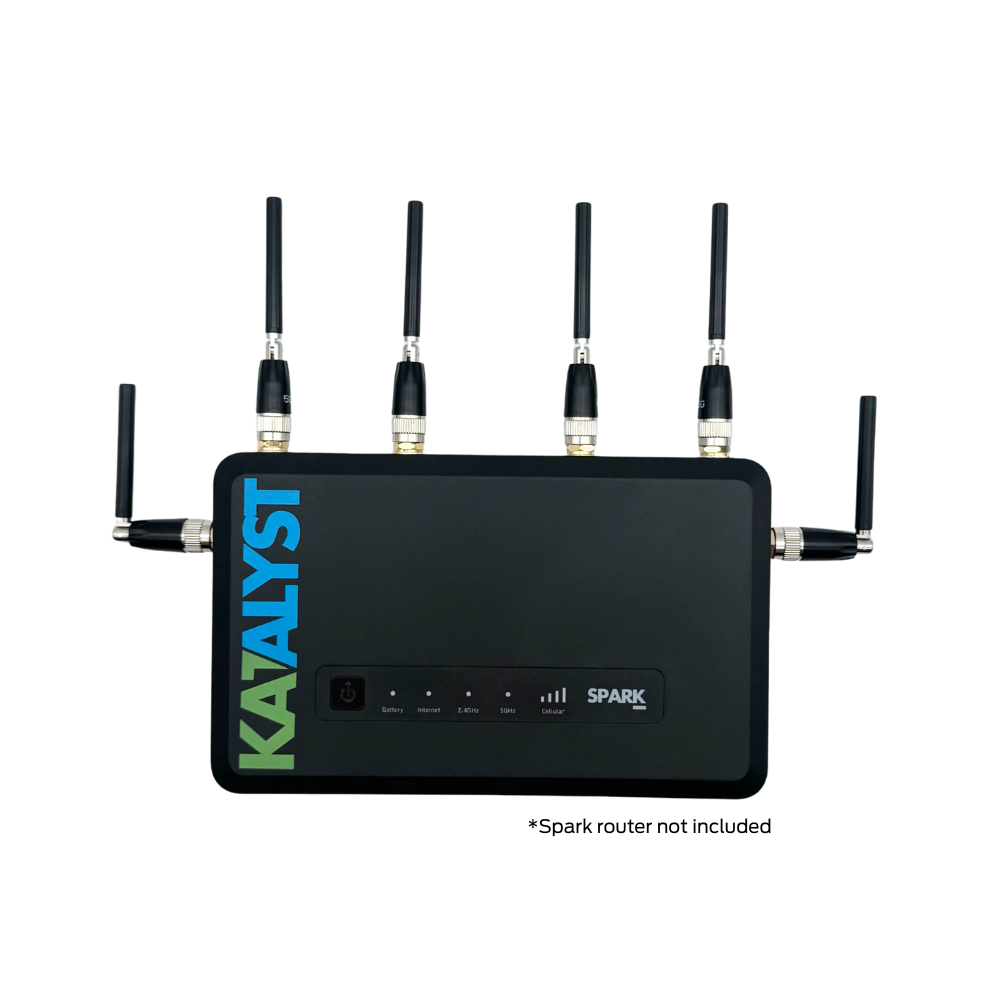

How do I install the mini antennas?
They are very simple to setup, but you must make sure you are installing them correctly or you risk damaging them. The cellular antennas labeled "5G" connect to the cellular ports in your router and the Wi-Fi antennas labeled "Wi-Fi" Connect to the two Wi-Fi ports in your router.
Where can I find more info on antenna performance?
You can find info on the 2x2 Mini-R performance HERE
You can find info on the 4x2 Mini-R performance HERE
