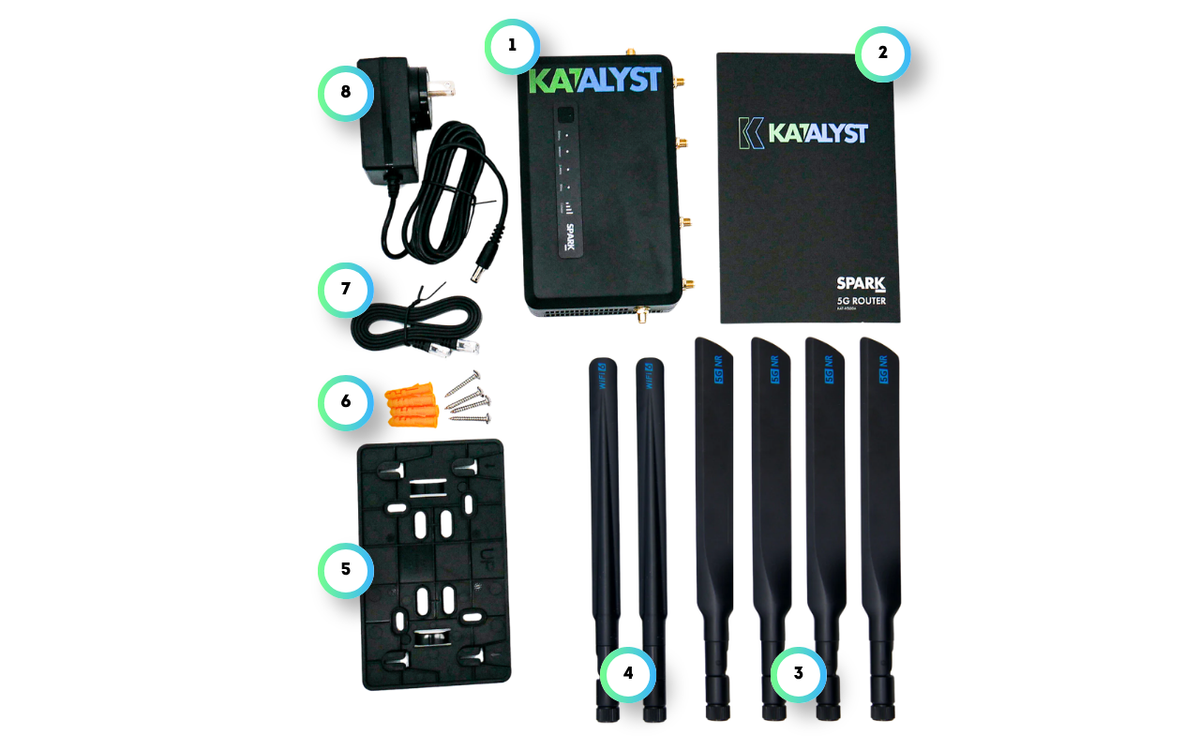

Inside The Box
- 1x Katalyst Spark Router
- 1x User Guide
- 4x 5G Paddle Antennas
- 2x Wi-Fi Paddle Antennas
- 1x Mounting Plate & Window Mount
- 1x Mounting Hardware Kit
- 1x Ethernet Cable
- 1x Power Adapter
Katalyst Spark 5G Business Portable Router
Regular price
$549.00
Regular price
Sale price
$549.00
Unit price
Couldn't load pickup availability
Brand:
Katalyst
MPN:
k500a
Shipping
Shipping
Standard orders are processed within 2–4 business days. Express and overnight orders are processed the same day if placed before 3PM EST.
Regular price
$549.00
Regular price
Sale price
$549.00
The Katalyst Spark K500A 5G Router delivers fast, secure 5G and Wi-Fi 6 connectivity in a compact portable design with a built-in battery lasting up to 8 hours. Supporting up to 200 devices and dual SIM failover, Spark keeps your team connected during travel, fieldwork, outages, and remote deployments. With simple setup and business-grade security, it’s enterprise-level internet you can take anywhere.
Compatible with: Verizon, AT&T, T-Mobile or your local ISP.
See Why the Katalyst Spark Keeps Business Moving

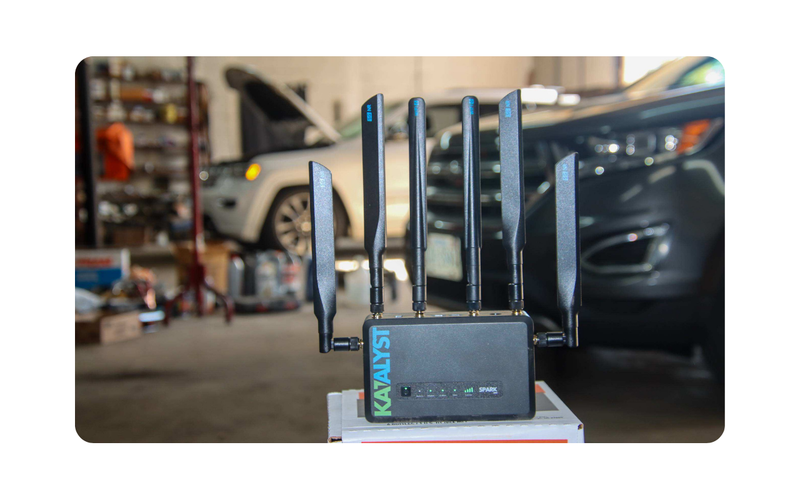

Powerful Wi-Fi 6 + 5G Connectivity
Spark combines Wi-Fi 6 and Cat 19 5G to provide fast, stable internet for teams that need reliable connectivity anywhere work happens.
Built-In Battery for Mobile Work
With up to 8 hours of runtime, Spark’s integrated 6,400mAh battery helps keep your network online during outages and mobile deployments.

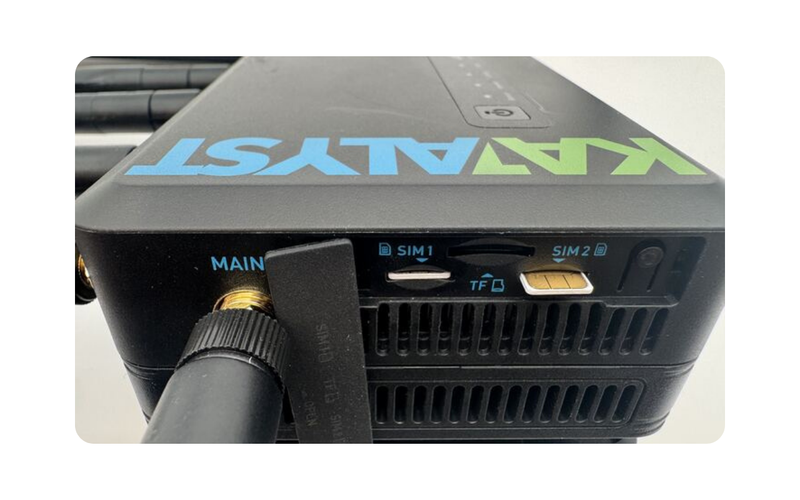

Dual SIM Internet Backup
Dual SIM functionality helps maintain reliable internet access by automatically switching networks when coverage is lost.
Connect up to 200 Devices
Keep your business connected with high-capacity 5G networking designed to support large teams and busy environments.

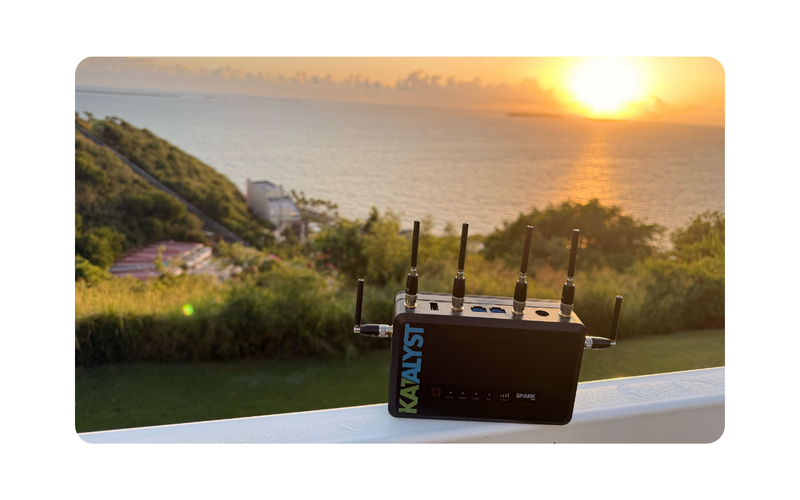

Grab and Go Internet
Lightweight and portable, Spark provides business-grade connectivity without the bulk of traditional networking hardware.
Unlocked OS with Edge Computing
Powerful edge computing functionality and a flexible operating system give businesses greater control over network deployment and management.

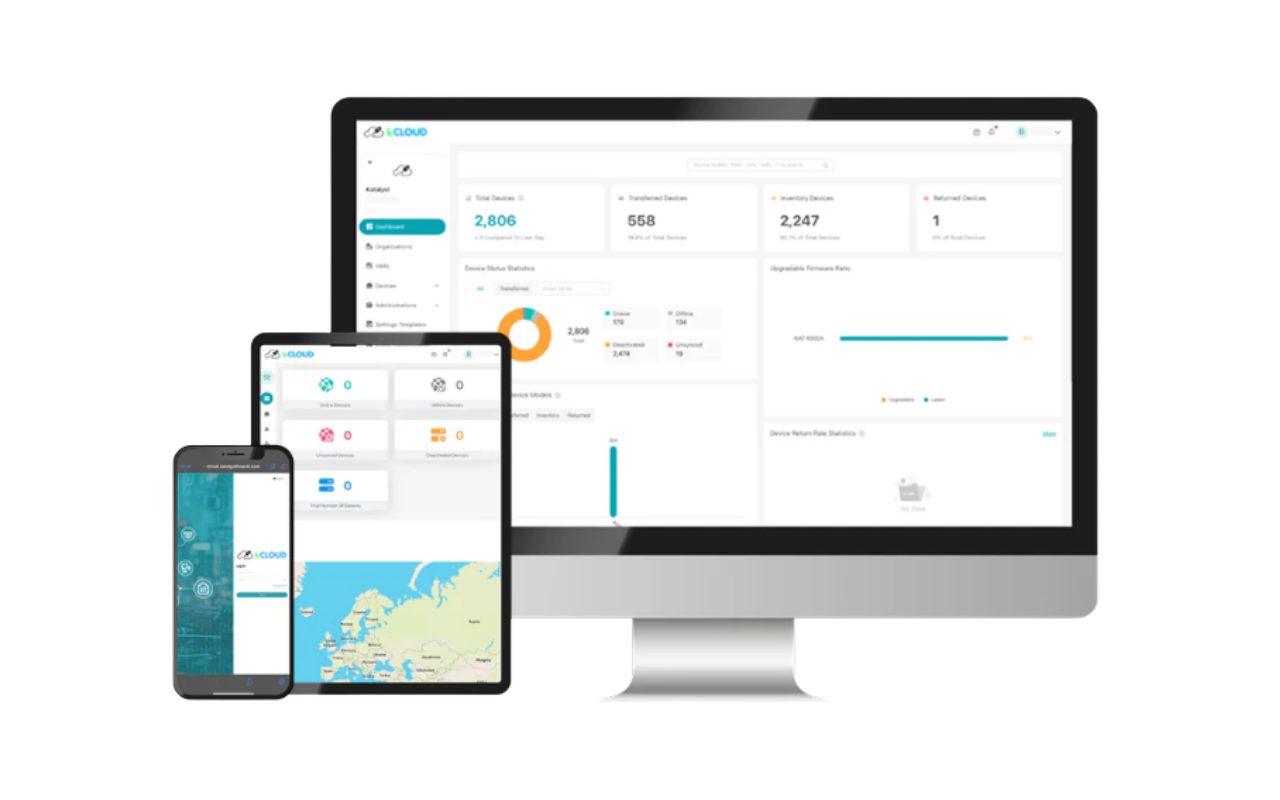

Everything You Need, Powered by kCLOUD
Versatile Across Industries
Kiosk Shops
Keep sales and promos running nonstop.
Field Teams
Access data and report from anywhere.
Food Trucks
Take orders, payments, and go where customers are.
Pop-Up Events
Take payments and manage sales anywhere.
Tradeshows
Demo, sell, and connect on the spot.
Delivery Vehicles
Stay connected for routes, tracking, and updates.
Katalyst Spark Specifications
Download full spec list: SpecSheet-Spark_1.pdf
| Operating System | OpenWrt |
| CPU | MediaTek Dual-core, @1.3GHz |
| Ethernet Speed | 10/100/1000/2500 Mbps |
| Wi-Fi | 802.11 a/b/g/n/ac/ax, 574Mbps (2.4GHz) | 802.11 a/b/g/n/ac/ax, 2402Mbps (5GHz) |
| Battery | 6400mAh/7.4V/47.4Wh |
| SIM Card Slot | 2 x Nano SIM card (12.3mm x 8.8mm) |
| TF Card Slot | TF card, maximum 1TB |
| USB Port | USB2.0 Type-A |
| Dimension | 6.10x3.74x1.93in |
| Weight | 1.68lbs |
| Temperature | Operating: 0 ~ 40°C (32 ~ 104°F) | Storage: -20 ~ 45°C (-4 ~ 113°F) |
| Humidity | Operating: 5%~95%, non-condensing | Storage: 5%~95%, non-condensing |
| VPN | OpenVPN client & server · WireGuard client & server Maximum OpenVPN Speed: 150Mbps | Maximum WireGuard Speed: 300Mbps · Policy routing |
| Firewall Function | Port forwarding · open port · DMZ |
| Ethernet Dialing Mode | DHCP, Static, PPPoE |
| Network Mode | Routing, AP, Wireless Bridge, Wired Bridge |
| Repeater Mode | Scans and connects to SSID | Connects to hidden SSID |
| Ethernet Port | 1 x 2.5G WAN, 1 x 1G LAN |
Frequently Asked Questions
Where can I find more info about the Spark?
Where can I find more info about the Spark?
- Katalyst Spark Spec Sheet:Spec Sheet Link
- Katalyst Spark User Guide:User Guide Link
- Katalyst Spark Setup Guide:Setup Guide Link
What networks is this device compatible with?
What networks is this device compatible with?
The Spark is fully compatible with Verizon, AT&T, T-Mobile, Us-Cellular, or your local ISP.
Can I use this as a hotspot?
Can I use this as a hotspot?
Yes, the Spark can be used as a hotspot. Its built-in battery makes it highly portable and suitable for use in a wide range of environments. In addition, it connects directly to cellular networks (4G/5G/LTE), allowing it to provide internet access without relying on a wired connection.
What is the purpose of a dual-sim router?
What is the purpose of a dual-sim router?
The purpose of a dual-SIM router is to provide reliable, uninterrupted internet access. It uses two SIM cards so that if the primary connection goes down, the router automatically switches to the secondary SIM, ensuring you stay online at all times.
How many devices can I connect at once?
How many devices can I connect at once?
You can connect up to 200 devices simultaneously while the Spark is operating, making it ideal for busy work environments, events, or even a family road trip.
Will the device work without being plugged in?
Will the device work without being plugged in?
Yes. you can use the device without plugging it in for up to 8 hours. After that, just recharge or keep it plugged in for continuous use.
Can I remove the antennas and replace them with smaller ones?
Can I remove the antennas and replace them with smaller ones?
Yes, the antennas are removable, giving you the flexibility to replace them with smaller versions that better fit your setup. We offer Katalyst Mini Antenna'son our site for a smaller setup.
I live in a rural area, are there any signal enhancement options to boost the Sparks signal?
I live in a rural area, are there any signal enhancement options to boost the Sparks signal?
Yes, you can pair the Spark router with the Katalyst Siren 4-Lead antenna, and it will boost signal in rural areas. We offer the Katalyst Siren here:Katalyst Siren Product Page
What is KCloud and how does it work?
What is KCloud and how does it work?
KCloud is Katalyst's Network management software which comes free when you purchase a Katalyst device. Manage your devices remotely via a web browser or with the KCloud App. You can find more info here: Katalyst KCloud
Does this come with a warranty?
Does this come with a warranty?
Yes, Katalyst offers a one-year limited hardware warranty. You can find more info about the warranty here.Katalyst Warranty
Is the Spark easy to setup?
Is the Spark easy to setup?
Yes. Simply insert a SIM card or connect an Ethernet cable, power on SPARK, and you're online.
