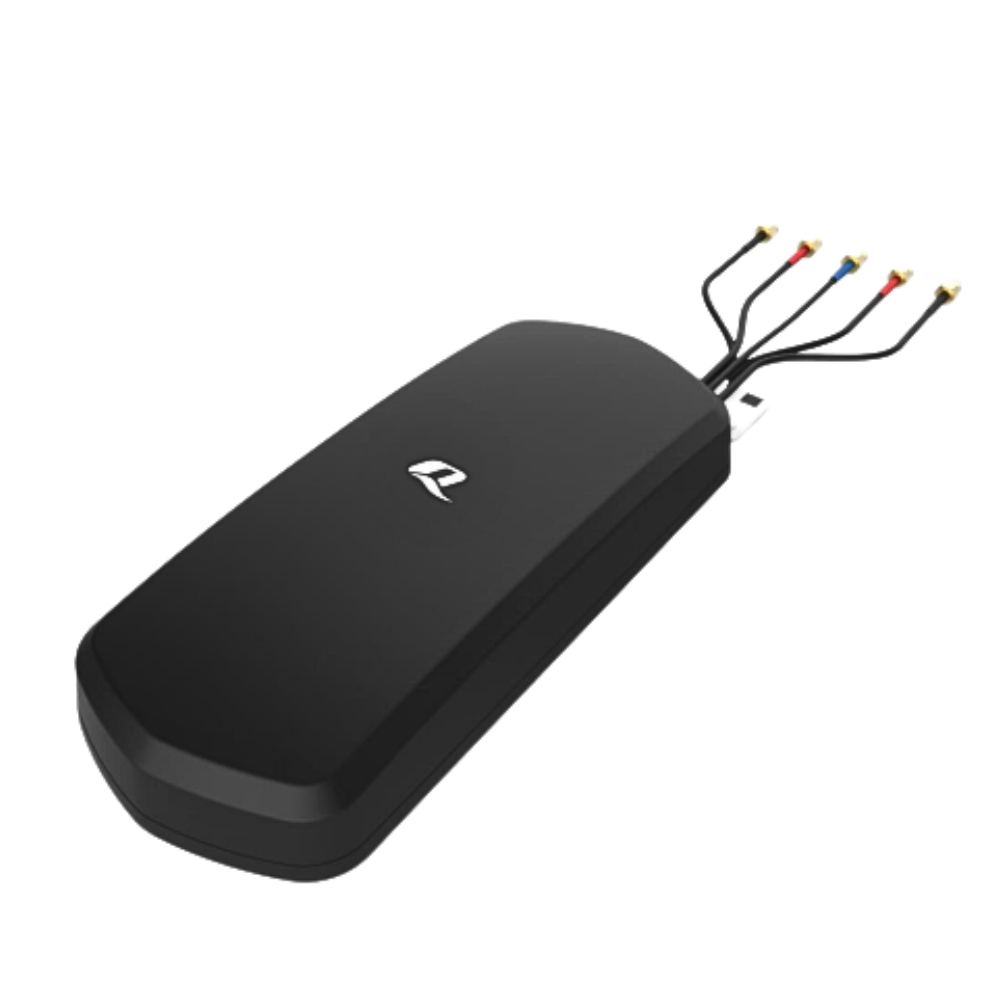

Quectel 5G & GNSS 5in1 Screw Mount Combo Antenna

The YEMN016AA is a high-performance 5G & GNSS 5-in-1 combo antenna designed for fast, stable, and reliable connectivity across demanding mobile and IoT environments. Measuring 204.4 × 86.7 × 32 mm, this low-profile screw-mount antenna delivers ultra-wideband coverage from 600–6,000 MHz, while maintaining backward compatibility for 4G, 3G, 2G, LTE Cat-M, and NB-IoT networks.

Built for long-term durability, the antenna features a rugged IP67 & IP69K enclosure with UV-resistant (UL 746c f1) and flame-resistant (UL 94 V-0) materials, making it ideal for harsh outdoor and industrial environments. It is fully compatible with Quectel RM520x Series modules and supports cable lengths from 300–5,000 mm (ECE-R118 compatible), terminated with SMA Male connectors.

Engineered for efficiency, the YEMN016AA integrates 4 × 5G/4G MIMO antennas plus 1 × GNSS L1/L5 antenna, delivering strong multi-band performance, high isolation, and stable reception across all supported networks.

Key Features

• 5-in-1 Combo Antenna Configuration
• 4 × 5G/4G MIMO antennas
• 1 × GNSS L1 & L5 antenna
• Ultra-wideband coverage:
• GNSS: 1164–1189 MHz, 1565–1606 MHz
• 5G/4G: 600–960 MHz, 1400–6000 MHz
• Screw-mount, low-profile design
• Cable Length Options: 300–5,000 mm (ECE-R118 compatible)
• Connector: SMA Male
• High isolation to prevent self-interference
• Rugged Housing:
• IP67 & IP69K rated
• UV resistant (UL 746c f1)
• Flame resistant (UL 94 V-0)
• PC housing for durability
• Compatible with Quectel RM520x Series modules
• RoHS & REACH compliant

Typical Applications

• HD video streaming over LTE / 5G
• Vehicle tracking and telematics systems
• IoT gateways & industrial routers
• Smart mobility devices
• Fleet and asset management
• Remote monitoring and automation
