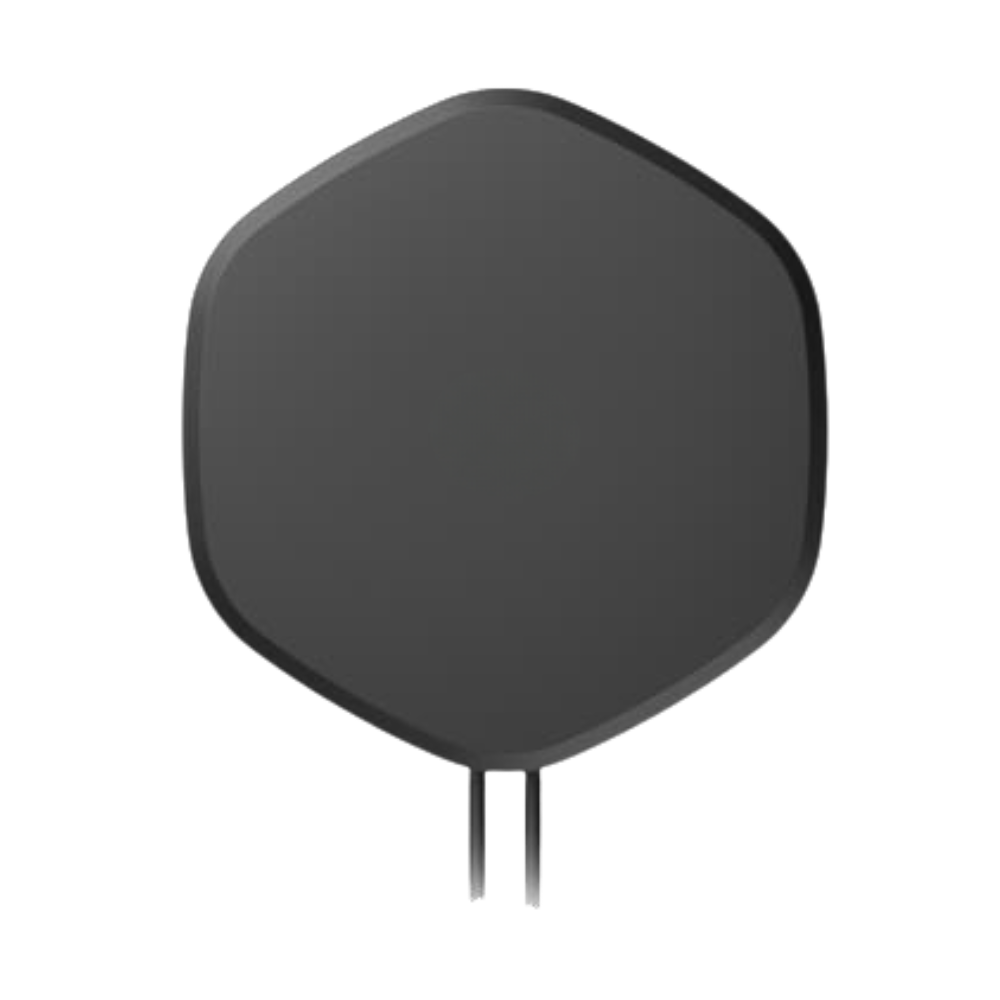

Katalyst SIREN - 5G 2-Lead Antenna
Couldn't load pickup availability
Shipping
Shipping
Standard orders are processed within 2–4 business days. Express and overnight orders are processed the same day if placed before 3PM EST.
Product information
Best paired with the CSG m212 Router
Multiple Mounting Options
The Katalyst SIREN Antena has multiple mounting options including; pole mount with hose clamps, wall mount with screws, and window mount with suction cups.
IP67 RATED
This rating makes the Katalyst SIREN Antenna suitable for outdoor installations ensuring reliable performance in more to extreme environments.
Tuned 5G Performance
Our product excels in the upper frequency range where 5G exist compared to other leading brands.
Ultra-Wide-Band
This antenna provides broad coverage from 410 -6000 MHz making it compatible with 5G/4G/3G/2G as well as Cat-M and NB-IOT.

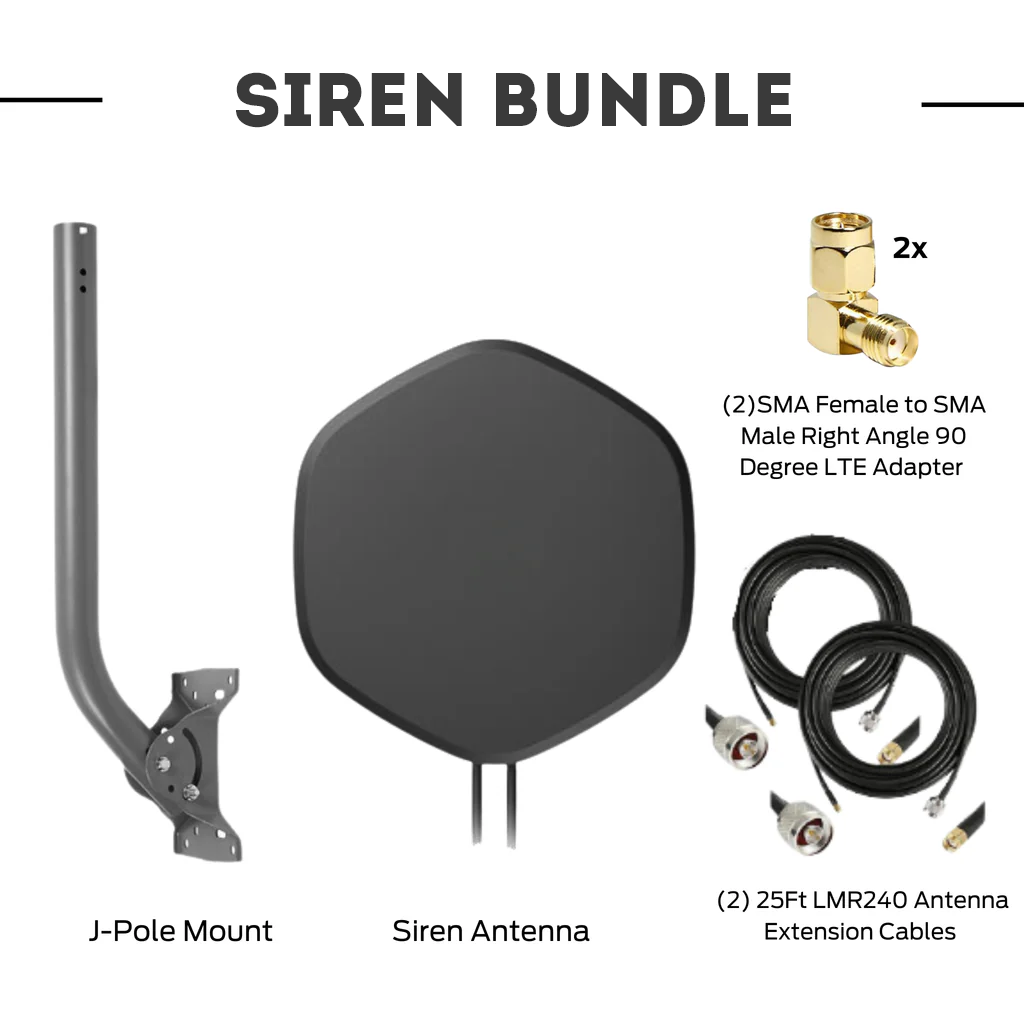

* Katalyst SIREN Antenna Bundle - Includes Katalyst SIREN Antenna, J-Mount Style Bracket with 22-inch Pipe Mast, 2x SMA Female to SMA Male Right Angle 90 Degree LTE Adapters, 2x 25ft LMR240 Low Loss Antenna Cable Extension
Key Features
| Optimized for 4G and 5G networks |
| High efficiency |
| Wall /suction mount included |
| SMA male connector |
| IP rating: IP67 & IP69K |
| Durable KIBILAC® ASA enclosure |
| Compatible with all 2 and 4 cell SMA port routers (4G/5G) |
Package List
| 1x KATALYST SIREN 2-1 Omni Directional 5G Antenna | kSA-2x |
| 1x Wall Mount |
| 4x Suction Cups |
| 1x Mounting Hardware |
| 1x Installation Instructions |
OR
| 1x KATALYST SIREN 4-1 Omni Directional 5G Antenna | kSA-4x |
| 1x Wall Mount |
| 4x Suction Cups |
| 1x Mounting Hardware |
| 1x Installation Instructions |
Technical Specs
| Frequency Range | 410-470 MHz, 617-2690 MHz, 3300-6000 MHz |
| Radiation Pattern | Omni-Directional |
| Polarization | Linear |
| Impedance | 50 Ω |
| Isolation | ≤ -8.8 dB |
Physical Attributes
|
Antenna Dimensions |
7.32 in. × 6.93 in. × 5.91 in. |
|
Antenna Material & Color |
ASA |
|
Cable Type & Color & Length |
ALSR200 & Black & 450mm |
|
Connector Type |
SMA Male |
| Weight | 1.43(lbs) |
| Mounting Type | Pole /Wall /Suction Cup |
Enviromental Attributes
| Operation Temperature | -40 °C to +85 °C |
|
Storage Temperature |
-40 °C to +85 °C |
|
Ingress |
Protection (IP) Rating IP67 |
|
RoHS & REACH Compliant |
Yes |
|
Housing UV Resistant |
UL 746c f1 |
Where can I find more performance details?
- You can find more performance details at the Katalyst Manufacturer website, HERE
Is there a recommended place to install the antenna?
- If you are installing the Siren on your building it is recommended to install the antenna above your roof for maximum exposure.
Can I use this with routers that aren't CSG or Katalyst?
- Yes, the siren is compatible with most routers, so long as you can connect the SMA Male cables to the router of your choice
