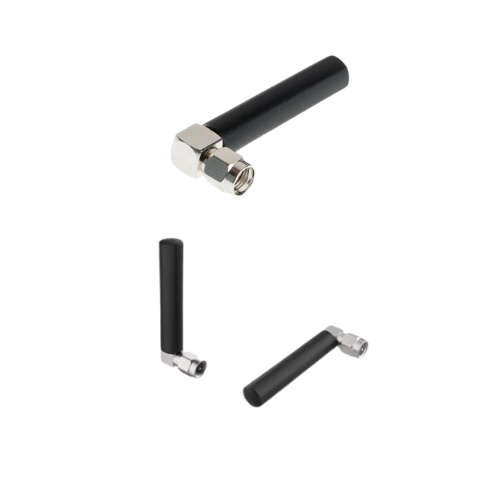

Katalyst Mini-R Device Antenna
$24.99 - $34.99
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Couldn't load pickup availability
Shipping
Shipping
Standard orders are processed within 2–4 business days. Express and overnight orders are processed the same day if placed before 3PM EST.
Regular price
$24.99
Regular price
Sale price
$24.99
Product information
Mini-R is a multi-band 5G/4G antenna built for high-efficiency signal across 600 to 6000 MHz. Compatible with LTE Cat-M, NB-IoT, and legacy networks, it’s a compact terminal-mount solution for cellular routers, remote monitoring, vehicle tracking, and more.
Key Features
| Frequency Band | 600–960 MHz, 1400–2690 MHz, 3300–6000 MHz |
| Efficiency | Up 70.7% (Bent) |
| Dimensions | Φ 10.22 mm × 69.5 mm |
| Compliant | RoHS Compliant |
Package List
| 4x Cellular Mini-R Antenna |
| 2x Wi-Fi Mini-R Antenna |
or
| 2x Cellular Mini-R Antenna |
| 2x Wi-Fi Mini-R Antenna |
Technical Specs
| Frequency Range | 600-960 MHz, 1400-2690 MHz, 3300-6000 MHz |
| Impedance | 50 Ω |
| Polarization | Linear |
| Radiation Pattern | Omni-directional |
Physical Attributes
| Antenna Dimensions | 0.4 (inch) x 2.59 (inch) |
| Casting Material & Color | POM & Black |
| Connector Type | SMA Male |
| Weight | 0.34 oz |
| Mounting Type | Terminal (Connector) |
Can I move these antennas or are they stuck in one place?
- The Mini-R antennas are articulating so you can move each individual antenna around. This helps find better signal and makes them more dynamic for storing.
How do I install the mini antennas?
- They are very simple to setup, but you must make sure you are installing them correctly or you risk damaging them. The cellular antennas labeled "5G" connect to the cellular ports in your router and the Wi-Fi antennas labeled "Wi-Fi" Connect to the two Wi-Fi ports in your router.
